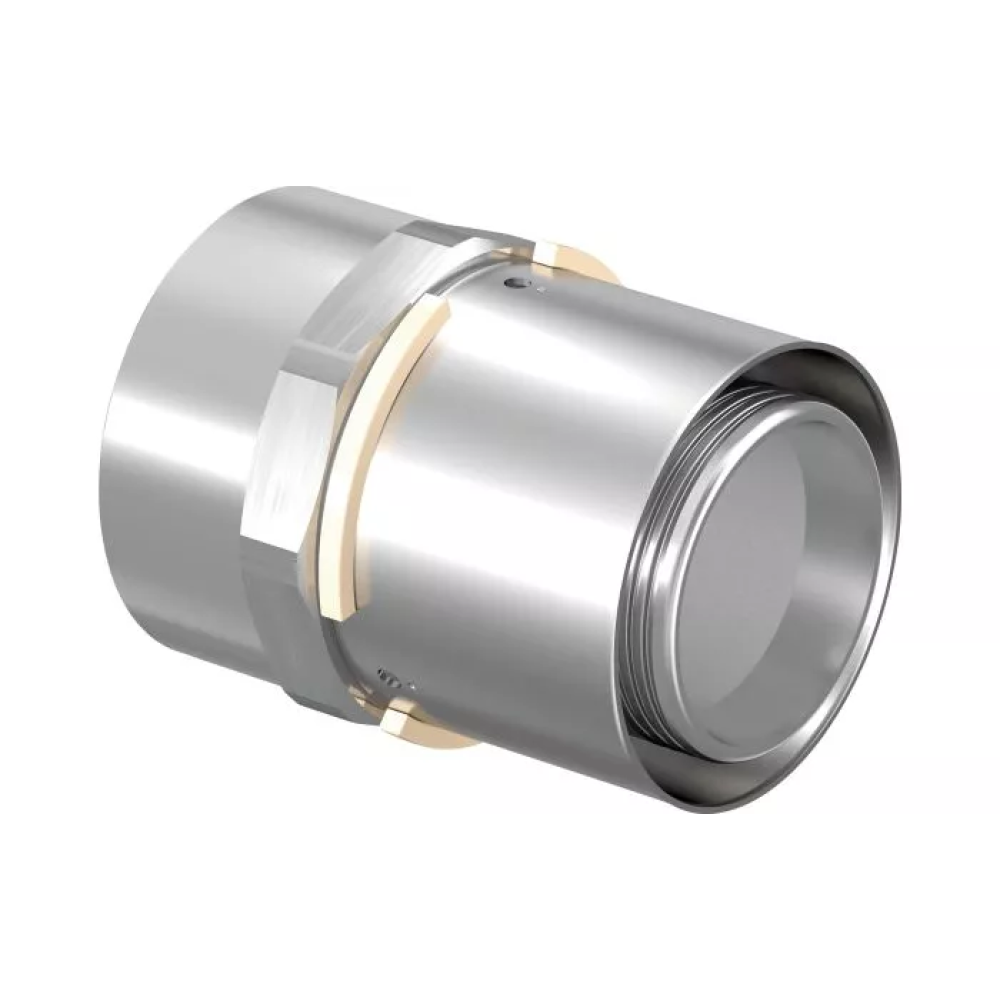

Uponor S-Press PLUS press fittings, female thread 50-Rp1 1/2"BP

Uponor S-Press PLUS press fitting is a connecting element with an internal pipe thread that allows you to connect a pipe to equipment with a threaded inlet. It is used in water supply, heating, domestic and commercial systems.

The body is made of brass with anti-corrosion protection, and the stainless steel press sleeve has an inspection window to check the quality of the installation.

Technical specifications:

• Connection: 50 mm pipe to Rp 1 1/2 " (internal pipe thread)

• Materials:

  • Brass body

  • Steel sleeve

• Working pressure: up to 10 bar

• Temperature range: up to 80 °C (continuous), up to 95–100 °C (short-term)

• Installation type: press connection (S‑Press PLUS)

• Compatibility: pipes with aluminum layer (MLC / Uni Pipe PLUS type)

Advantages:

• Compatibility with metal-plastic pipes

• Simple and quick installation without soldering

• Complete tightness thanks to "unpressed = leak-proof" technology

• Control of correct crimping through the window on the sleeve

• Corrosion protection and material durability

• Color coding for identification

Application:

Ideal for connecting pipes to boilers, filters, collectors, taps and other equipment with a threaded connection in water supply and heating systems.
