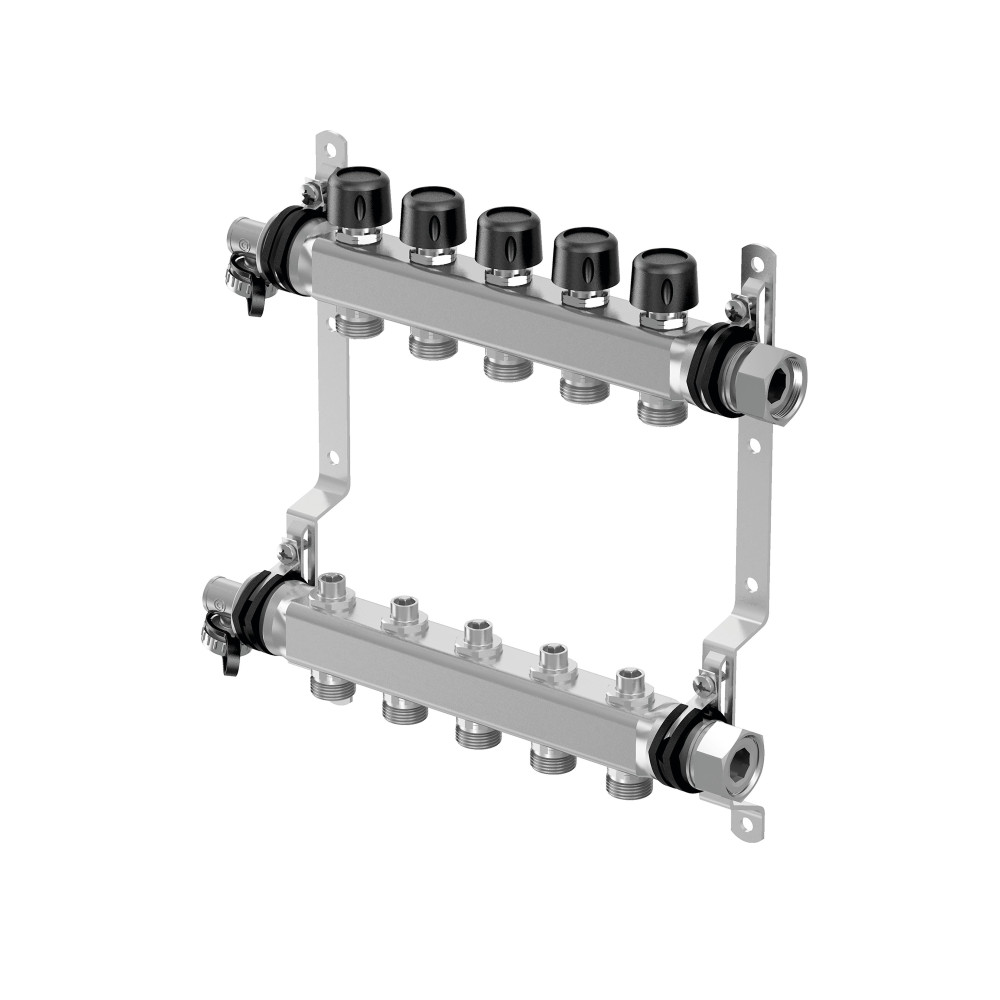

Сталевий колектор без витратомірів Uponor Vario S LS 6x3/4 Euro

This is a pre-assembled steel manifold with shut-off valves . It is intended for radiator heating, underfloor heating systems and warm walls. Not suitable for cooling systems .

The package includes:

• Supply and return manifolds made of steel

• 5 Ø ¾″ Eurocone outputs on each

• Balancing valves on the return manifold - possibility of mounting servo drives (230V - art. 1141676 and 24V - art. 1141677)

• Side swivel units with fill/drain taps and automatic air vents

• Two brackets with sound-absorbing inserts

• Connection entries - 1″ union nuts with flat seals

• Flat seals included

Technical specifications:

• Material: stainless steel

• Number of contours: 6

• Outlet: external thread ¾″ Eurocone

• Center distance: 50 mm

• Operating temperature: up to 90 °C

• Maximum pressure: up to 10 bar

• Distance between collectors in height: 200 mm
• The maximum flow rate per collector is 3.5 m³/h.

Advantages:

• Provides precise control of individual circuits using shut-off valves

• Steel material ensures high reliability and durability

• Compact design - easy to install in a cabinet or on a wall

• Easy to maintain - access to connections and filling/heating

• The ideal solution for simple underfloor heating/warm wall systems

• Suitable for manual or automated balancing

Order the Uponor Vario S LS steel collector from San-Store — quality guarantee, official products and fast delivery across Ukraine.
