Connecting fitting (Eurocone) Uponor Minitec Ø9.9 - 3/4" BP

Uponor Minitec adapter 9.9×1.1–G3/4" Euro (art. 1005266) — reliable connection for underfloor heating systems

This adapter is designed to connect Uponor Minitec Comfort Pipe 9.9×1.1 mm to distribution manifolds or fittings with G3/4" (Eurocone) thread. Its design ensures a tight and stable connection in water heating systems with low installation height.

Advantages:

• Exact compatibility : specially designed for 9.9×1.1 mm PE-Xa pipes used in Minitec systems.

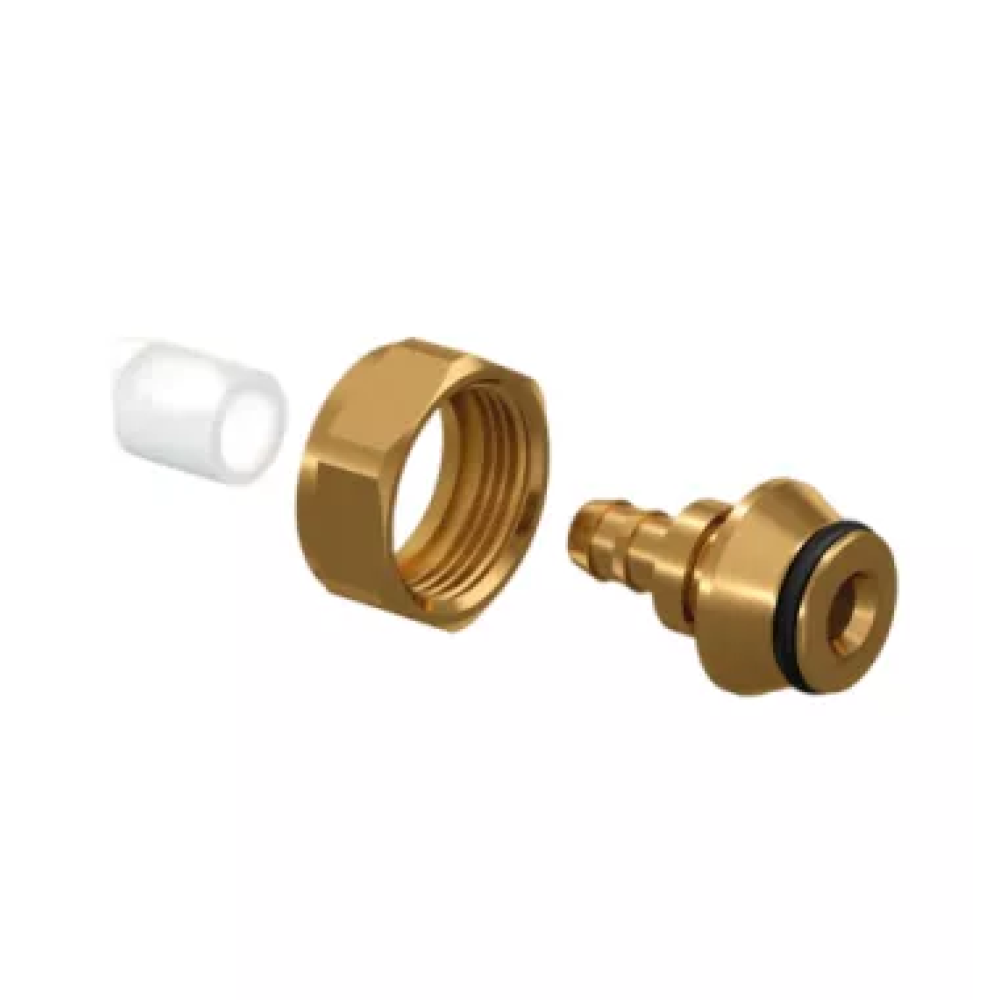

• Reliable design : consists of three elements - a brass support sleeve with a sealing ring, a compression nut and a PEX ring for fixing the pipe.

• Eurocone connection : standard G3/4" thread allows easy integration of the adapter into most distribution manifolds and fittings.

• Compactness : the overall length of 35 mm allows the adapter to be used in confined spaces without losing functionality.

Technical specifications:

• Thread on the collector side : G3/4" (Eurocone)

• Material : brass (support sleeve and nut), PEX (retaining ring)

• Working pressure : up to 6 bar

• Maximum ambient temperature : 70 °C

• Adapter length : 35 mm

• Weight : 67 g

Application:

• Water heating systems : ideal for installation in Uponor Minitec underfloor heating systems.

• Retrofit and upgrade : Thanks to its compact size, the adapter is convenient for use in existing systems with limited space.

• Quick installation : simple design ensures easy and quick installation without special tools.

This adapter is an important component of the Uponor Minitec system, providing a reliable and durable connection between pipes and distribution elements. Its use ensures efficient operation of the heating system and reduces the risk of leaks.
