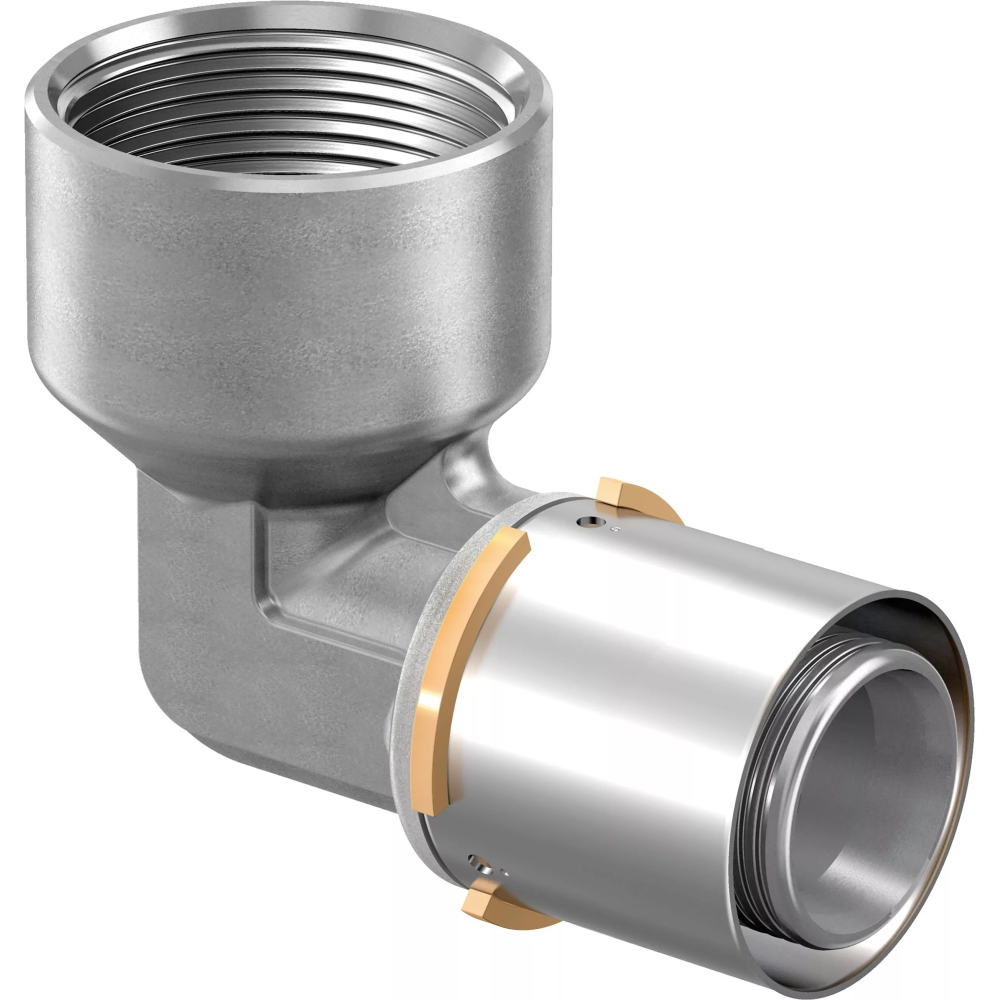

Elbow internal thread Uponor S-Press PLUS 50-Rp1 1/2"FT

The angled press fitting is designed to connect a pipe to elements with an internal pipe thread Rp 1 1/2″ . It provides a 90° turn of the connection, while maintaining high tightness and reliability in long-term operation.

Made of brass with anti-corrosion coating, equipped with a fixed stainless steel sleeve. Compatible with the S-Press PLUS system, which does not require additional seals and guarantees a connection according to the principle: "not pressed = not sealed" .

Technical specifications:

• Connection type: pipe 50 mm × internal thread Rp 1 1/2″

• Body material: brass with protective coating

• Sleeve: stainless steel, fixed

• Angle: 90°

• Working pressure: up to 10 bar

• Temperature regime:

  • continuously - up to +70 °C

  • short-term - up to +95 °C

• Compatibility: Uponor Uni Pipe PLUS and metal-plastic pipes in the S-Press PLUS system

Advantages:

• Reliable connection without seals - installation in 3 easy steps

• Correct crimp indicator - a guarantee of quality control

• Anti-corrosion coating - resistance to moisture and chemicals

• Reduced pressure losses - thanks to optimized internal geometry

• Simple and quick installation without additional pipe preparation

Application:

Used in heating, hot and cold water supply systems. Ideal for domestic, commercial and industrial applications where a pipeline connection to devices with internal thread is required.
