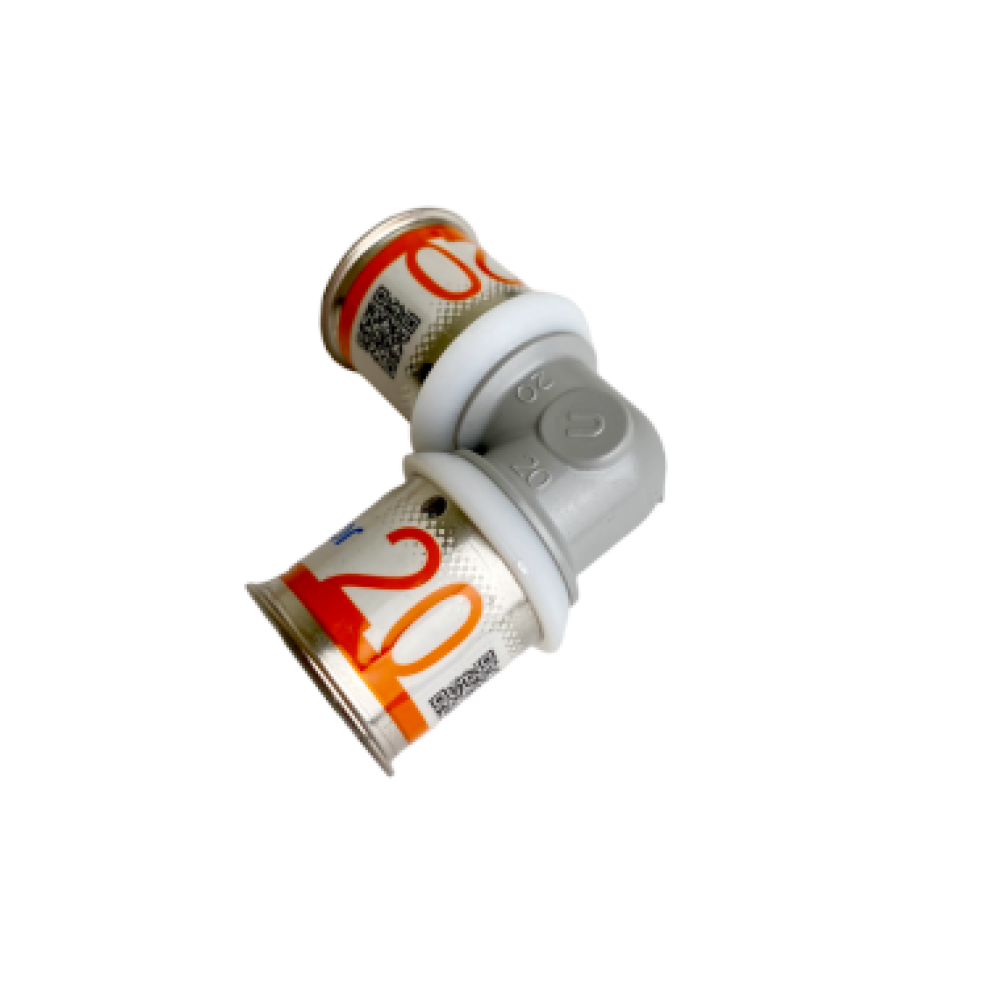

Uponor S-Press PLUS press fittings 90° elbow PPSU 20-20

This is a reliable solution for creating 90° pipe bends in heating, cold and hot water systems. Thanks to the use of high-quality polyphenylsulfone (PPSU), it combines strength, high temperature resistance and durability.

Installation is performed using modern S-Press PLUS technology, which ensures the tightness of the connection, control of the crimping quality through indicators on the sleeve, and protection against installation errors thanks to the "unpressed - leaky" principle.

Technical specifications:

• Type: 90° angle fitting

• Connection: 2 Ø 20 mm pipes

• Housing material: PPSU (polyphenylsulfone)

• Sleeve: stainless steel with visual crimp indicator

• Working pressure: up to 10 bar

• Temperature: up to +70 °C (continuous), up to +95 °C (short-term)

• Compatibility: Uni Pipe PLUS pipes, MLC pipes (metal-plastic)

Advantages:

• Temperature and chemical resistant PPSU housing

• S-Press PLUS technology - quick installation without additional seals

• Crimping control through inspection window

• “Unpressed – Unsealed” principle for installation safety

• Compact size - ideal for installation in hard-to-reach places

Application:

The angle fitting is used to connect pipes at a 90° angle in water supply and heating systems. Suitable for residential, commercial and technical premises.
