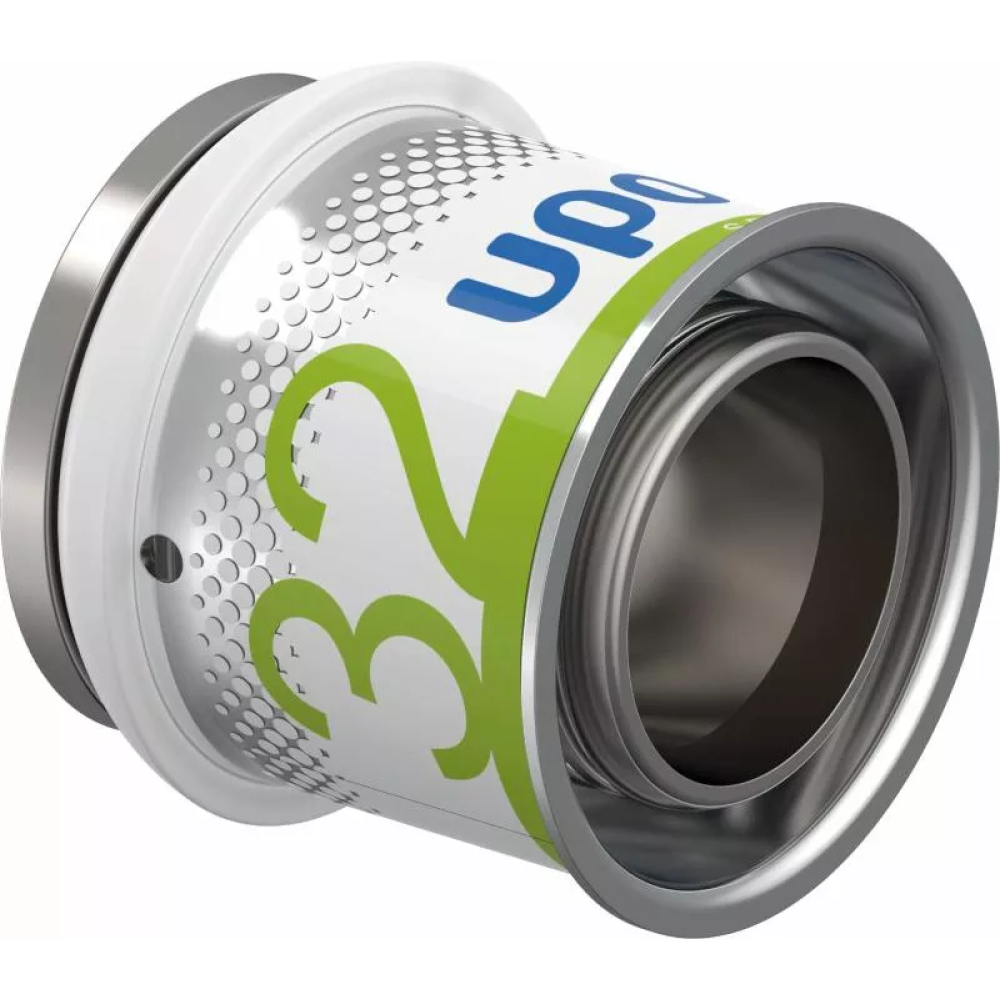

Plug Uponor S-Press PLUS 32

Press plug designed for one-time hermetic closure of the end of the pipeline. Made of brass with anti-corrosion coating and equipped with a fixed stainless steel sleeve with a special crimp indicator . If the installation is performed incorrectly, the fitting instantly leaks water - the "unpressed = leaky" system guarantees the safety of the structure.

Technical specifications:

• Diameter: Ø 32 mm

• Body material: brass with anti-corrosion coating

• Connection type: press plug for S‑Press PLUS system

• Sleeve: stainless steel with inspection window and press indicator

• Test protection: leakage function in case of incorrect pressing

• Maximum operating pressure: up to 10 bar

• Temperature regime:

  • up to +70 °C — continuously

  • up to +80 °C — for heating

  • briefly up to +95 °C — up to 100 hours of operation

Advantages:

  ✔ Easy installation — three-step installation system: without chamfering and pipe calibration

  ✔ Easy to check crimp quality – thanks to the sleeve inspection window

  ✔ Error-free connection — guaranteed protection against leaks

  ✔ Optimized body shape — ensures efficient flow and minimal pressure loss

  ✔ Compatibility with old and new Uponor components

Application:

Ideal for completing water supply, heating or circulation systems where temporary or permanent closure of the pipeline is required. Used in assembly units, technical cabinets, manifolds or during hydraulic testing.
