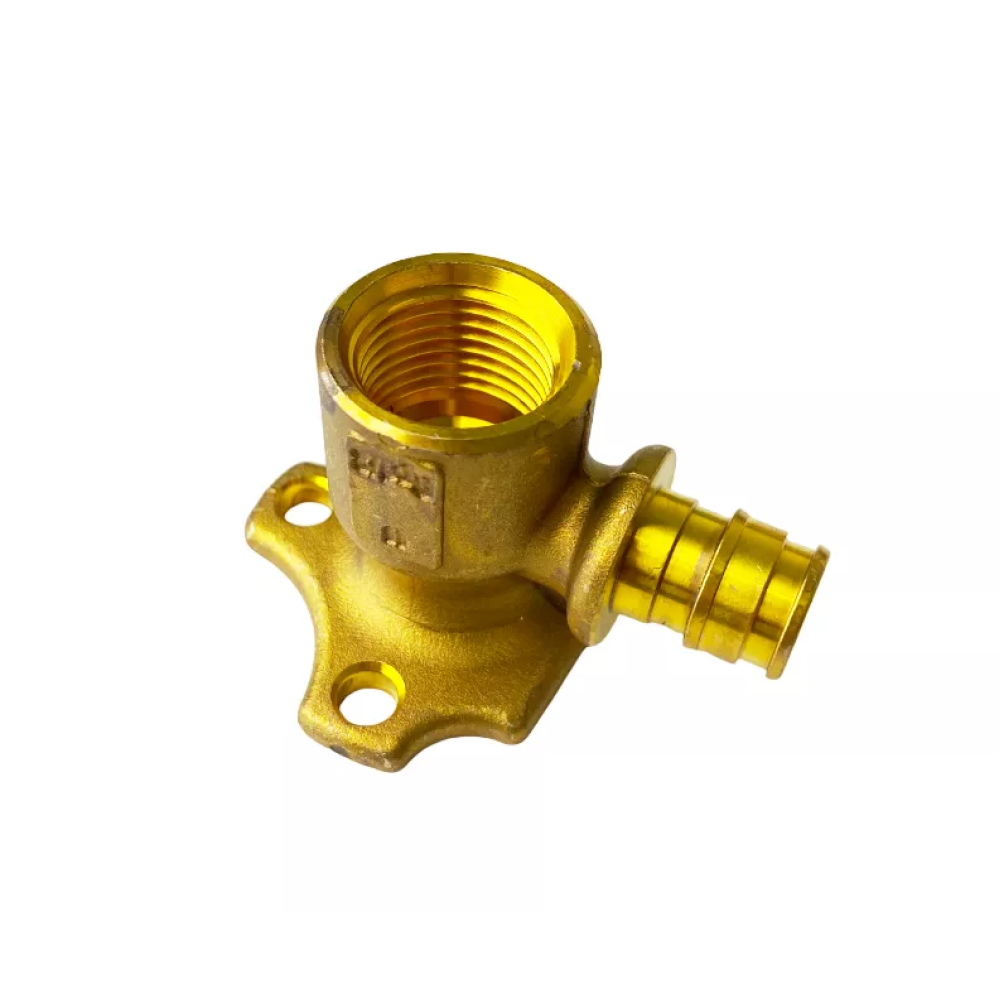

Uponor Smart Aqua water outlet (3 holes) Q&E PL 20-Rp1/2"FT

This is an angled brass water outlet with ½" internal thread, which is designed to connect Ø20 mm pipes in hot and cold water supply systems. It is mounted on a mounting plate using three mounting holes. The connection to the pipe is made using the company's Q&E (Quick & Easy) technology - through pipe expansion and a press sleeve clamp, without sealing elements.

Technical specifications:

• Body material: brass

• Connection type: 20 mm pipe → Rp ½″ internal thread

• Connection technology: Q&E (Quick & Easy)

• Mounting: 3 mounting holes for mounting on a bar

• Working pressure: up to 10 bar

• Operating temperature: up to +95 °C

• Compatibility: Uponor PE-Xa pipes 20 mm, Smart Aqua Q&E system

Advantages:

• ✔ Strong and durable thanks to the all-brass body

• ✔ Quick and reliable installation without sealants or glue

• ✔ Rigid fixation on the bar - ideal for concealed installation

• ✔ Suitable for connecting mixers, taps, filters, etc.

• ✔ Designed for use in modern water supply systems

Application:
The Uponor water outlet is used to connect plumbing equipment in bathrooms, kitchens, and technical rooms. It is ideal for concealed installation in walls with reliable fixation on the mounting bar.
