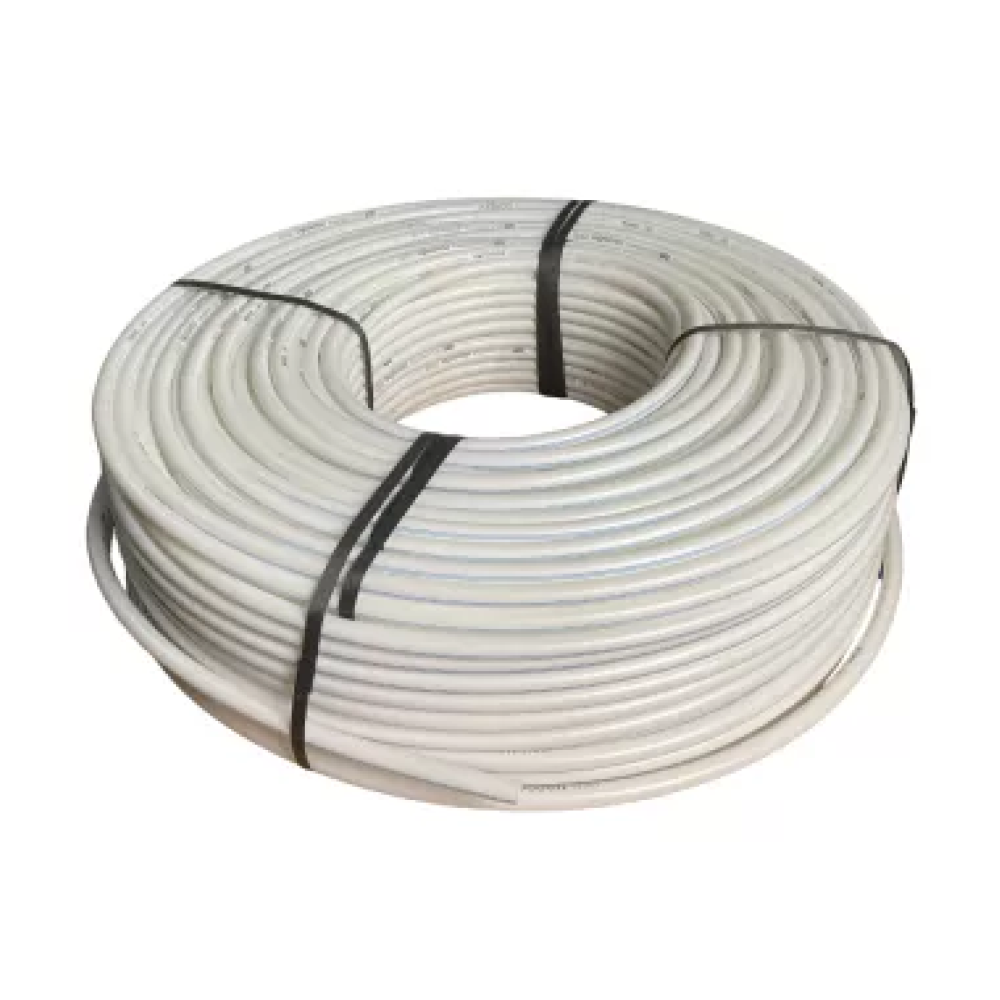

The Uponor Comfort Pipe Minitec pipe is made of cross-linked polyethylene PE-Xa with an anti-diffusion layer, which is used in surface and convection heating and cooling systems.
The Uponor pipe of the Comfort Pipe series is distinguished by a diameter of Ø from 9.9 to 25 mm, which is chosen depending on the engineering system in which the pipe will be used.
FEATURES
- It has an anti-diffusion layer from EVOH oxygen penetration to prevent corrosion of system elements.
- It has an additional outer layer of polyethylene PE with two blue stripes that protects against mechanical damage.
- Service life of 50 years with seasonal operation of the heating system.
- Maximum working temperature: Throbe = 90 °C; Working pressure: 6 bar (Trob = 60 °С; Working pressure: 10 bar).
- Compatible with Uponor Q&E fittings and clamp adapters.
- Compliance with European and Ukrainian standards and the EN ISO 15875 certificate.
- Practical experience of operation for 50 years.
Uponor PE-Xa pipes are easily connected using Uponor Quick & Easy (Q&E) fittings.
Cut the pipe - Expand the pipe with the Q&E ring on it - Connect. Done!
Release form: bay 480 m
Diameter: 9,9 mm
Service life: 50 years
Maximum temperature: 90°C.
Maximum working pressure: 6/10 bar at 90°C/70°C
