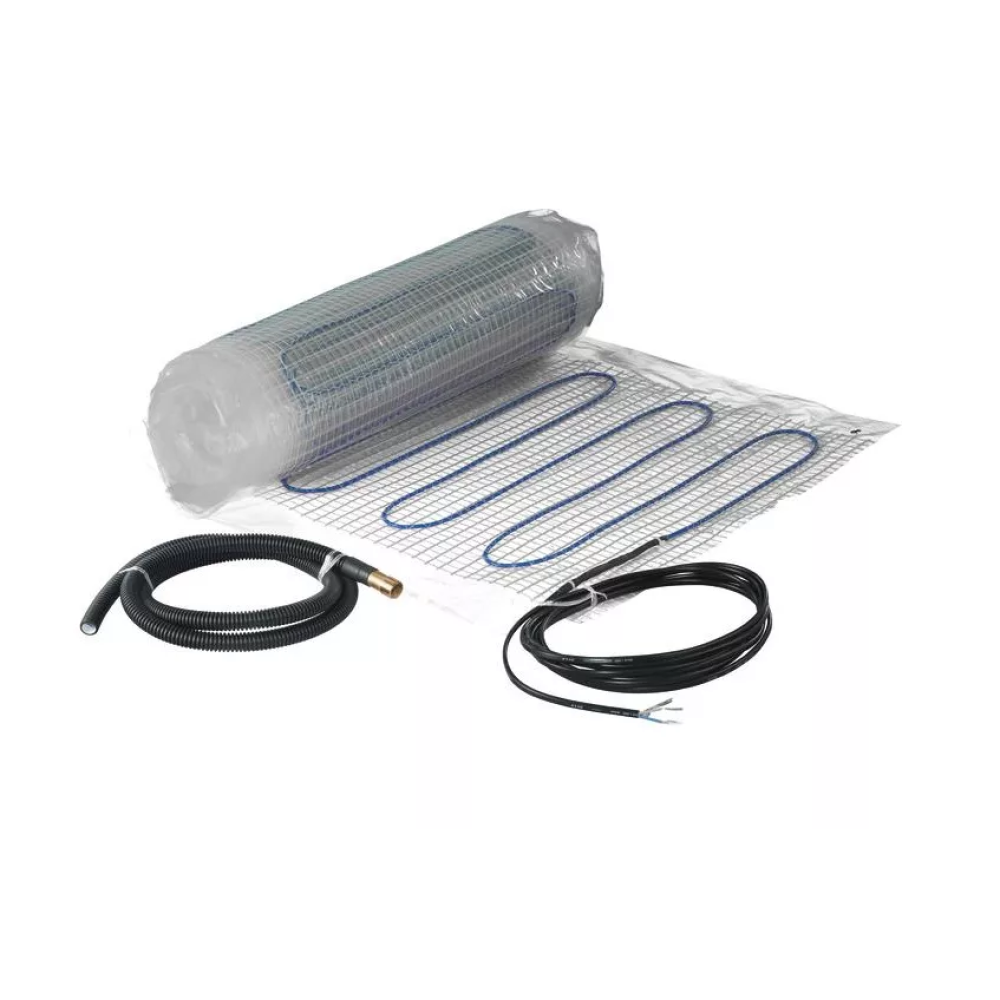

Self-adhesive electric mat under tiles UPONOR COMFORT E160-1

The main advantages of Uponor Cable Mat 160-1:

• Ultra-thin profile — only 3 mm , easily mounted in screed or tile adhesive.
• High-quality construction :
  • Reinforced mesh for secure cable fixation with the correct pitch.
  • Three-core shielded cable ensures safe operation.
  • Flexible FEP sheath provides durability and high temperature resistance.
  • Cold end for easy installation.
  • Corrugated tube for temperature sensor is included.

Technical specifications:

• Heating area: 1 m²
• Power: 160 W/m²
• Mat dimensions: 2 m × 0.5 m
• Power supply: 230 V
• Protection class: IPX7
• Resistance: 329 ohms
• Cable type: three-core
• Max. heating element temperature: 90 °C
• Min. installation temperature: 5 °C
• Cable diameter: 3 mm
• Power cable length: 4 m

Where to use?

Equipment:

• Heating mat
• Corrugated tube for a temperature sensor
• Instruction
• Warranty card

Production: Germany
