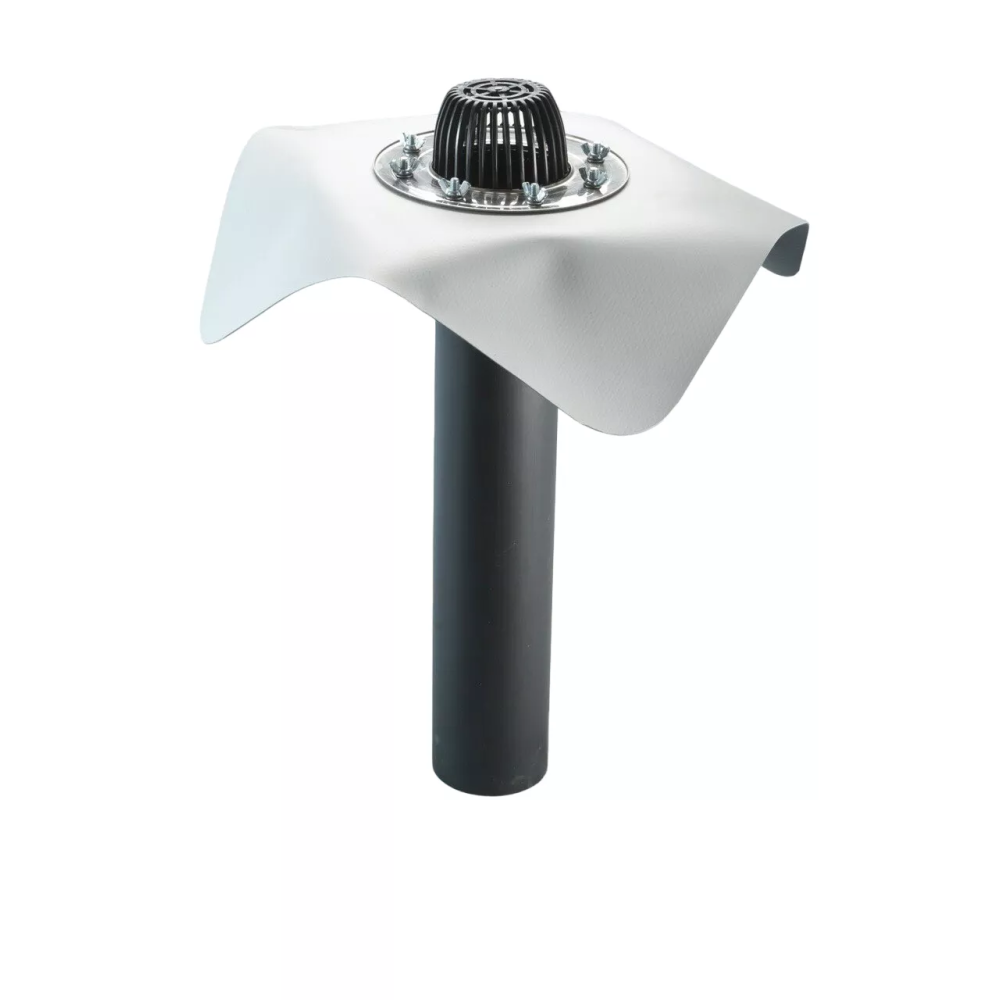

Roofing funnel SANSTORE 110/600mm with stainless flange, with PVC apron

They are installed with any heat and waterproofing materials. A variety of options makes it possible to choose a roof funnel and accessories for any thickness of a flat roof.

Roofing funnel with a stainless steel flange , 100 or 600 mm high, consists of: a body with a pipe with a diameter of 110 mm, a stainless steel clamping flange, a set for attaching it to the funnel body, a leaf catcher and a heating system.

The roofing funnel is also equipped with a PVC or bitumen apron for easy attachment to PVC roofing or roofing felt.

The funnel body provides a tight fit to the waterproofing and vapor barrier layer of a flat roof, and the leaf catcher prevents leaves and other debris from entering the roof drainage system.

The presence of a stainless steel flange allows for better sealing on the roof surface.



Advantages of using PVC funnels:

- any type of waterproofing;
- service life – at least 50 years;
- light weight;
- easy installation;
- resistance to aggressive environments and UV;
- wide range for any project;
- operating temperature from -50 to +90 C;

TECHNICAL SPECIFICATIONS:

receiving pipe diameter (DN) – 110 mm
pipe height - 600 mm (60 cm)
operating conditions - t −50°С… +90°С
throughput - 8l/s
service life – 50 years
material: PVC (polyvinyl chloride)
additional: stainless steel flange
apron material: PVC membrane or roofing felt
manufacturer: Ukraine
