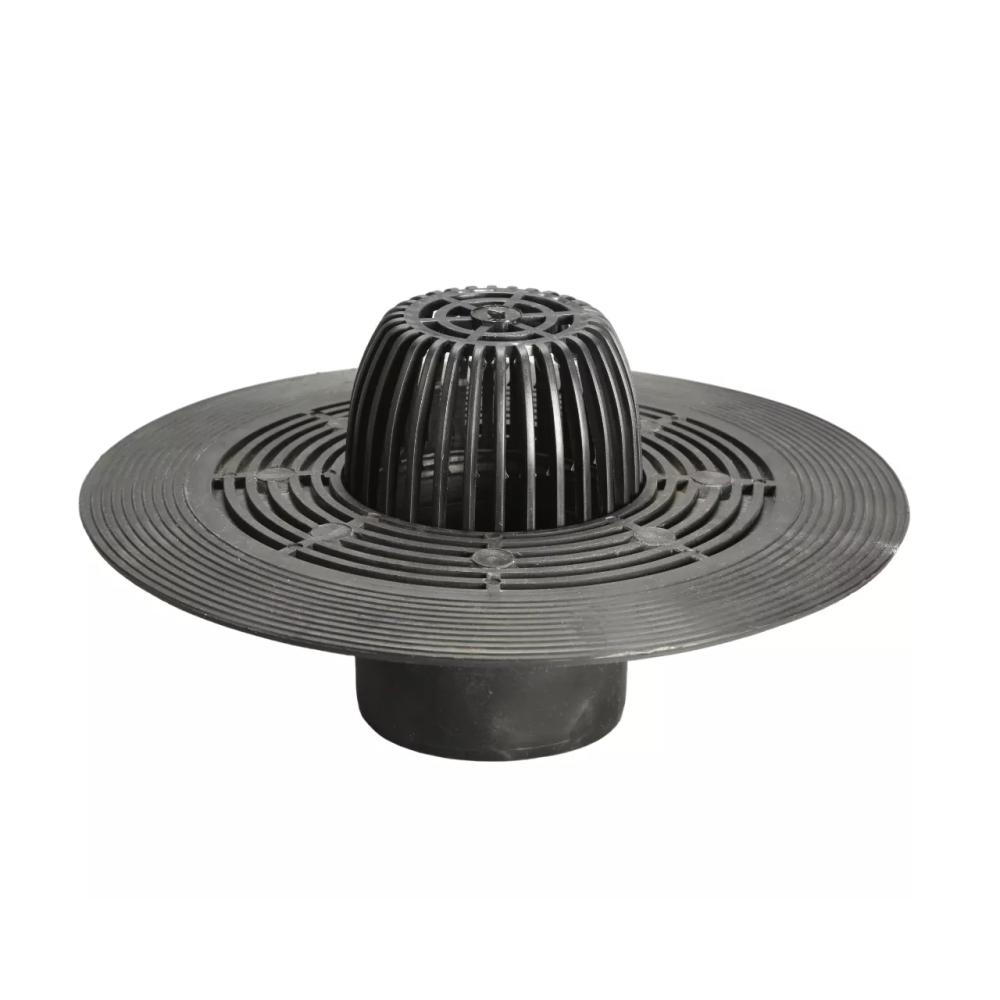

Воронка Покрівельна SGT 110/100мм

A roof gutter is the best way to drain melt and rainwater from the surface of a flat roof (operated and unoperated, inverted, standard or "green").

They are installed with any heat and waterproofing materials. A variety of options makes it possible to choose a roof funnel and accessories for any thickness of a flat roof.

A flangeless roof drain with a height of 100 or 600 mm consists of a housing with a pipe with a diameter of 110 mm and a leaf catcher.

The funnel body provides a tight fit to the waterproofing and vapor barrier layer of a flat roof, and the leaf catcher prevents leaves and other debris from entering the roof drainage system.

Advantages of using PVC funnels:

- any type of waterproofing;
- service life – at least 50 years;
- light weight;
- easy installation;
- resistance to aggressive environments and UV;
- wide range for any project;
- operating temperature from -50 0 to +90 0 С;

TECHNICAL SPECIFICATIONS:

• receiving pipe diameter (DN) – 110 mm
• pipe height - 100 mm (10 cm)
• operating conditions - t −50°С… +90°С
• throughput - 8l/s
• service life – 50 years
• material: PVC (polyvinyl chloride)
• manufacturer: Ukraine
