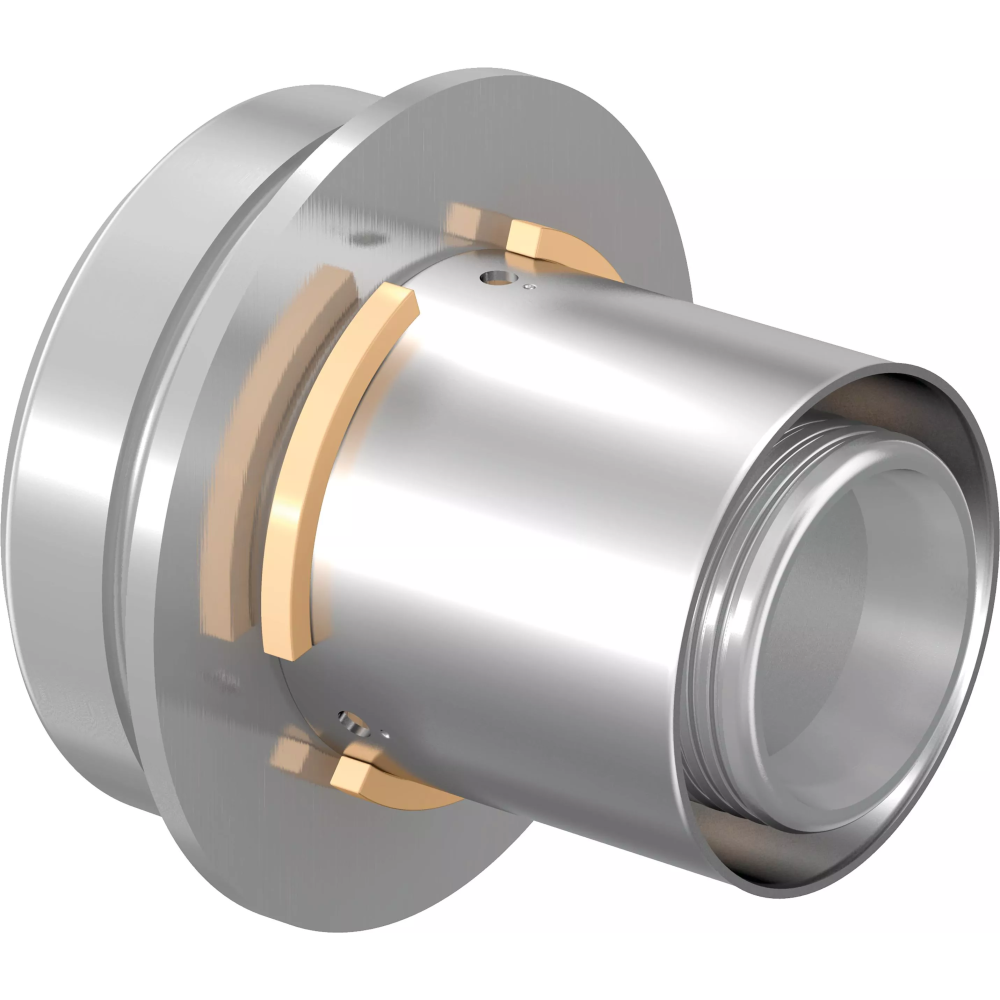

Press adapter Uponor S-Press 110-RS3

The Uponor S-Press 110-RS3 press adapter is designed to connect a 110 mm diameter pipe of the press system to the RS3 modular system. Provides a reliable, leak-proof connection of large diameters in water supply, heating and engineering networks. The body is made of tinned brass, has a stainless collet with a support ring for clamping jaws. Installation is carried out using the S-Press press connection technology, without the need to calibrate the pipe before installation.

Technical specifications

Advantages

• Provides a transition for large diameter pipe (110 mm) to the RS3 system.

• The tin-plated brass body and stainless steel collet provide high strength and corrosion resistance.

• Press fitting without pipe calibration - saves installation time and reduces the risk of errors.

• Meets the requirements for large engineering systems where tightness and reliability are important.

Installation recommendations

• Make sure that the Ø 110 mm pipe is cut at a right angle and free of burrs.

• Insert the adapter into the RS3 module according to the installation depth.

• Use a press tool that is compatible with the S-Press system and has the appropriate diameter.

• After installation, perform a hydraulic test for tightness and connection strength.

• Provide access to the connection for maintenance or inspection.
