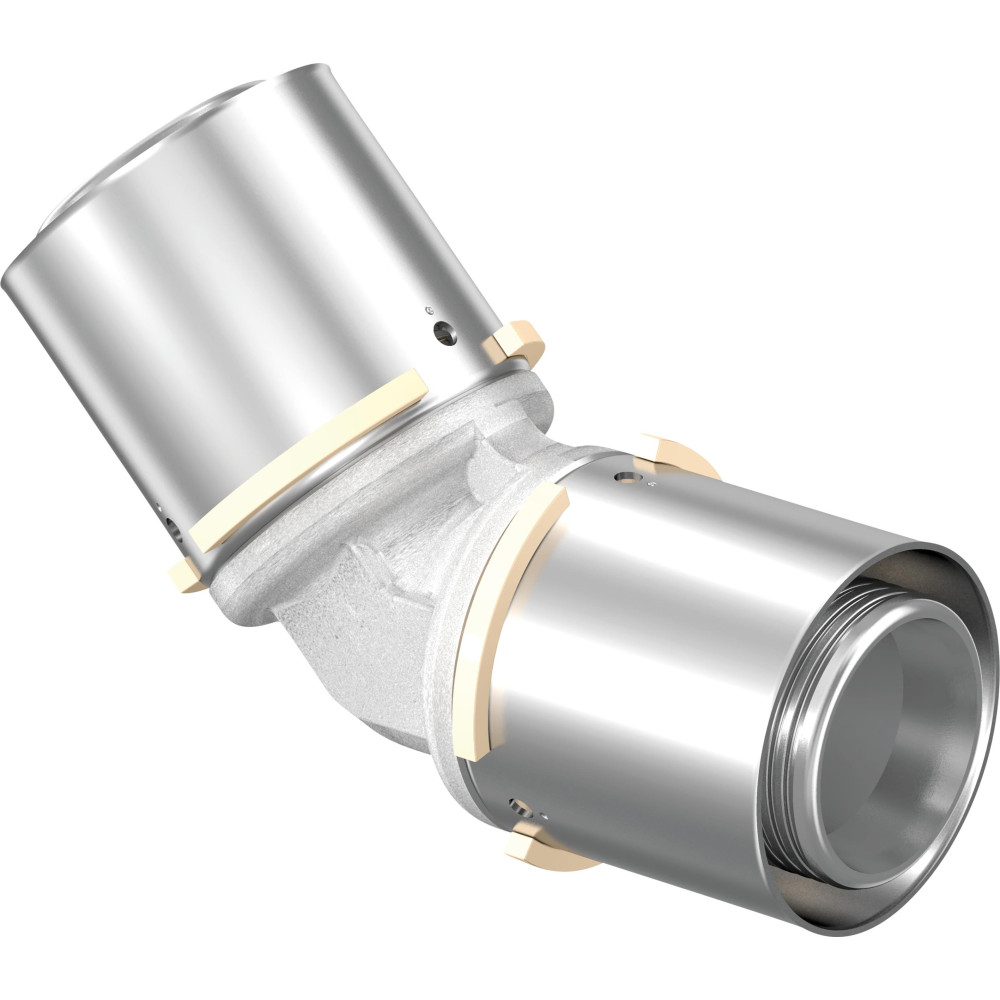

Uponor S-Press PLUS 45° brass elbow 40-40

The angle fitting is designed to connect pipes at a 45° angle in water supply and heating systems. Made of brass with an anti-corrosion coating, it provides reliability, durability and resistance to high temperatures.

Thanks to the innovative S-Press PLUS technology, installation is quick and safe. The integrated stainless steel sleeve has a viewing window to check the correct connection, and the "not pressed = not sealed" system prevents installation errors.

Technical specifications:

• Connection dimensions: 40 × 40 mm

• Shape: 45° angle

• Body material: tin-plated brass

• Sleeve: stainless steel, fixed

• Working pressure: up to 10 bar

• Temperature range: up to +70 °C continuously, up to +95 °C briefly

• Compatibility: Uponor Uni Pipe PLUS and metal-plastic pipes in the S-Press PLUS system

Advantages:

• Robust brass housing - long service life even with intensive use

• Secure installation without seals – thanks to the fixed sleeve

• Visual control of crimp quality through inspection window

• Error protection : the connection will not be airtight without crimping

• Optimized passage — ensures efficient water flow

Application:

Used in cold and hot water, heating and cooling systems. Ideal for creating bends in pipelines in residential, commercial and industrial facilities.
