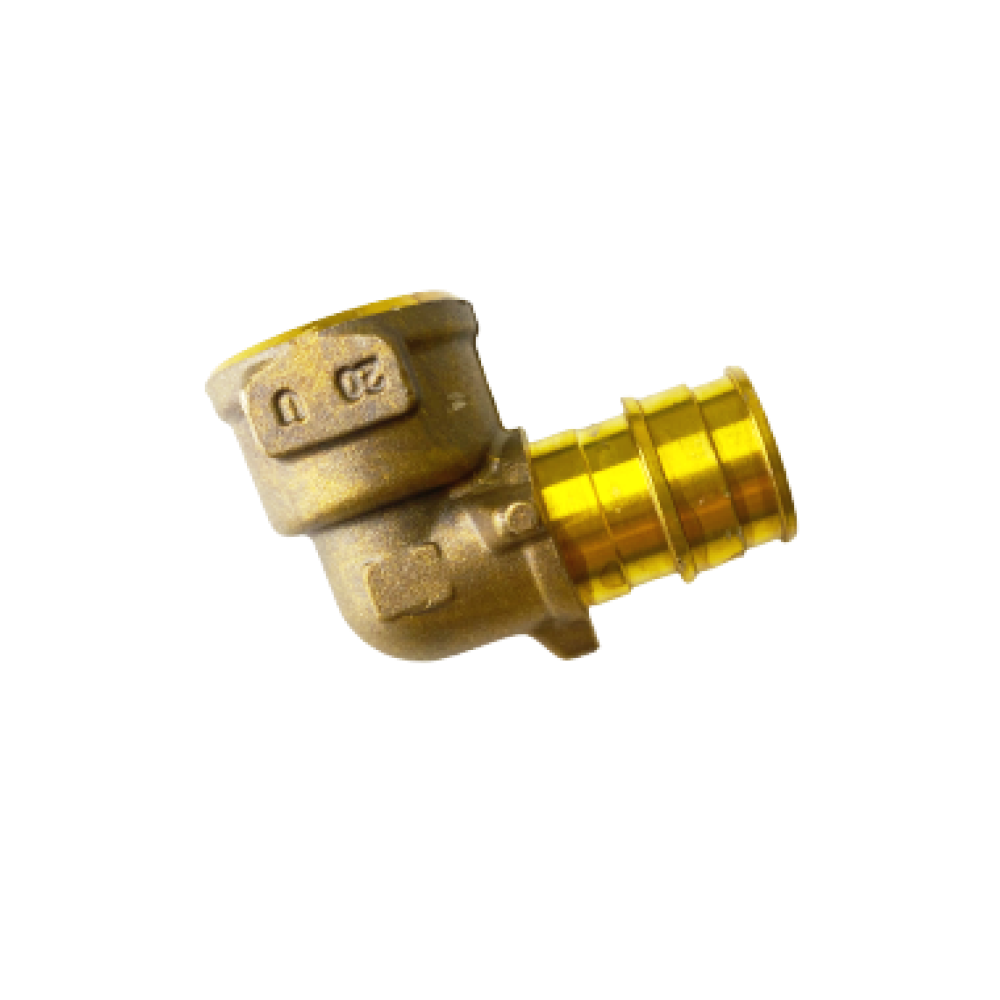

Uponor Q&E elbow with internal thread 20-1/2"BP

The Uponor Q&E series elbow is designed to connect pipelines at an angle of 90°. It has a connection for a pipe with a diameter of 20 mm and an internal thread of ½″. Made of high-quality brass, which ensures strength, tightness and a long service life. The fitting is ideal for heating and water supply systems where a transition from a pipe connection to a threaded one is required.

Technical specifications:

• Angle: 90°

• Connection: 20 mm × G ½″ internal thread

• Body material: brass

• Weight: approximately 0.08 kg

• Length: l₁ ≈ 25 mm, l₂ ≈ 36 mm

• Insertion depth: z₁ ≈ 10.5 mm, z₂ ≈ 14 mm

• Operating temperature: up to 95 °C

• Working pressure: up to 10 bar

Advantages:

• Reliable and airtight connection

• Compatible with Uponor Q&E system for PEX pipes Ø 20 mm

• Easy installation and compact dimensions

• Resistance to corrosion and high temperatures

Scope of application:
Used in cold and hot water supply systems, heating and other engineering networks with Uponor plastic pipes.
