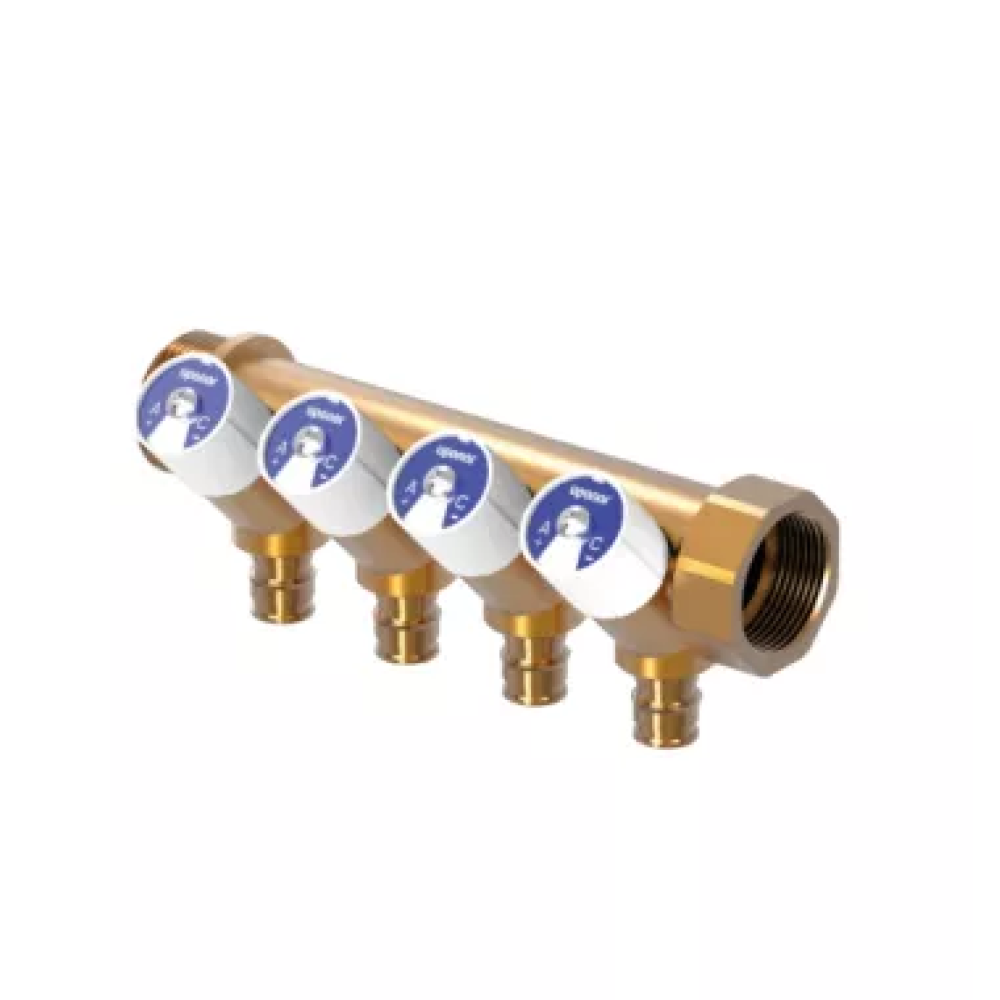

This is a brass manifold of the Q&E PL SH series with four Ø 16 mm outlets and built-in shut-off valves (one per circuit), designed for fast and reliable water distribution in domestic systems. The manifold is equipped with a combined 1″ inlet (external/internal pipe thread) - which allows connection to both external and internal elements.
High-quality brass is resistant to dezincification, which confirms the durability and reliability of this model
Equipment:
-
Double collector for 4 circuits (inlet/outlet 1″)
-
3 shut-off valves — possibility of separate shutdown of each circuit
-
Ø16 mm outputs with 38 mm center distance for connecting Q&E systems
-
Colored valve handles for easy identification
Technical specifications:
-
Material: brass (DR-brass) - corrosion resistant
-
Number of contours: 4
-
Outputs: Ø 16 mm Q&E
-
Center distance: 38 mm
-
Inlet threads: 1″ (MT and FT according to EN 10226‑1)
-
Max. operating temperature: up to ±60 °C (as per consultation above)
-
Max. operating pressure: up to 6–10 bar (depending on application)
-
Compatibility: only with PE‑Xa pipes and Q&E PL SH fittings
Advantages:
-
Built-in shut-off valves - allow servicing of individual circuits without a general system shutdown
-
Q&E standard guarantees a leak-proof connection without gaskets
-
Brass construction provides resistance to water chemistry and long service life
-
Provides a compact solution - ideal for small water systems
-
Meets Uponor brand standards
Scope:
-
Hot/cold water systems in apartments and houses
-
Connecting mixers, filters, boilers, washing machines
-
For cooling or heating systems with high temperature conditions
You can order an Uponor manifold with shut-off valves at san-store.com.ua — official Uponor quality, technical support, and fast delivery across Ukraine.
