Karoapp Extension Coupling 18cm (K-CL)

Height increaser K-CL

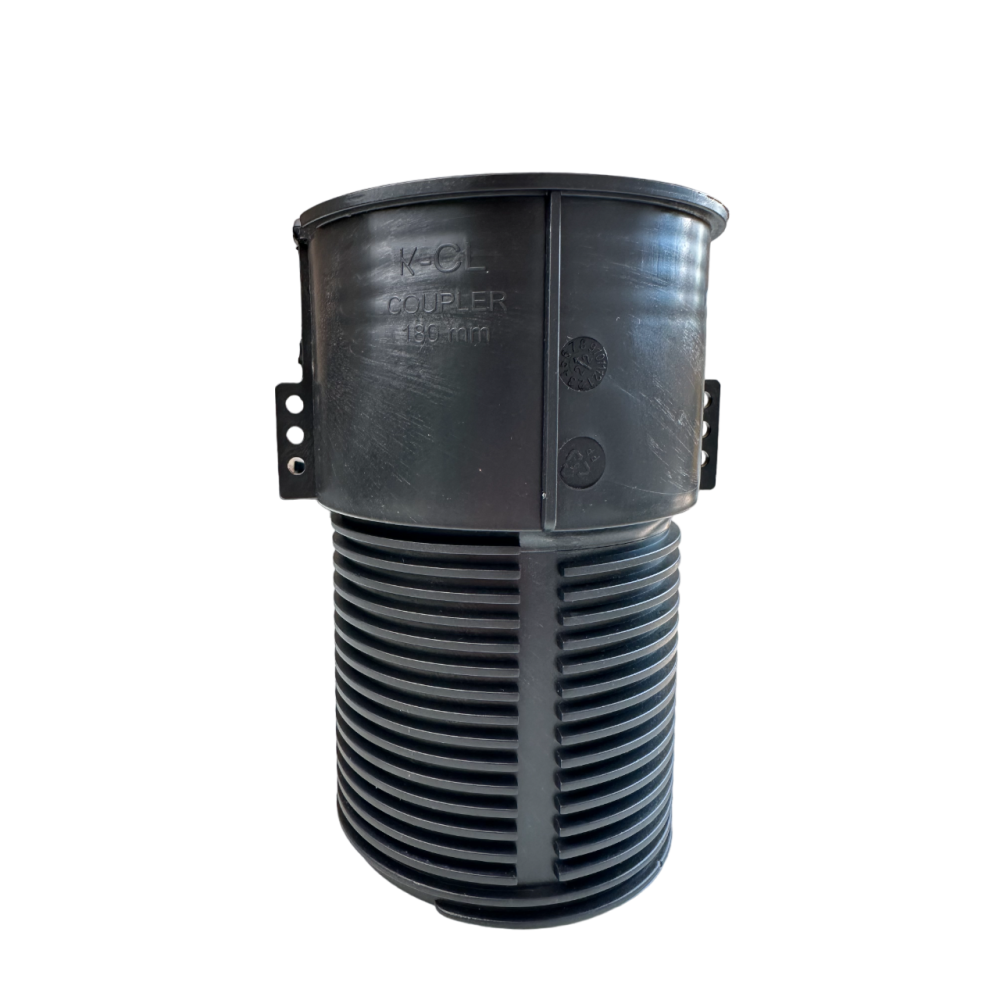

Height increaser, or extension coupling K-CL. Used when it is necessary to raise the height of the support by more than 225mm. Why 225mm ? The highest support has this height. If you need to increase it, an extension coupling is used.

In order to connect the coupling to the support, you need to unscrew the support into two parts (top and base). The coupling will be attached between them. Fastening is carried out by screwing the coupling into the thread of the support: first the base, and then the top. The height of the coupling is 18 cm. Since the coupling is screwed in when attaching, its height will decrease accordingly. Depending on which support the coupling is used with, the height by which it will increase the support is from 105 mm to 140 mm.

Most often used with K-A3 (82-135mm) and KA-4 (133-225mm) supports.

It is recommended to mount no more than 6 couplings on one support. This will allow you to raise the height level to 1083mm. For structural stability and height fixation from above and below the coupling, it is necessary to use the K-CL locking ring.
