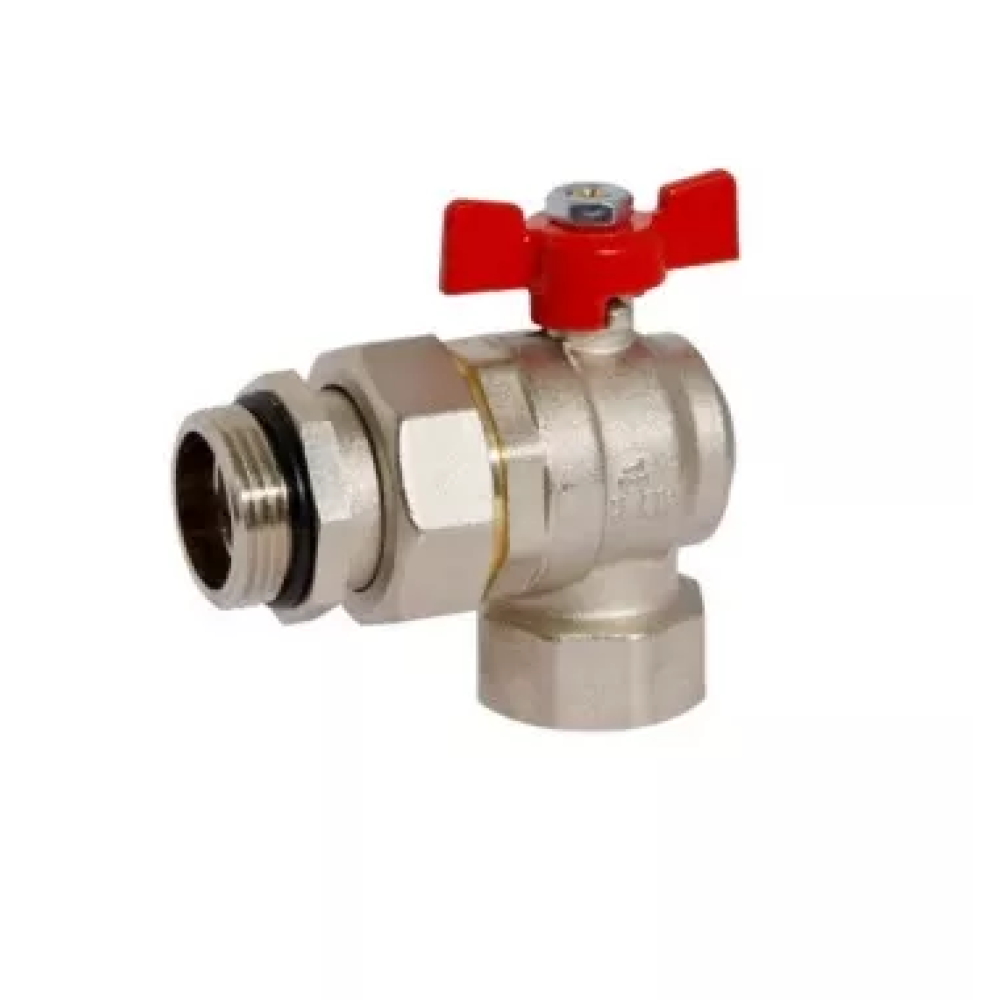

American angle ball valve 3/4

The Bianchi 422R angle ball valve is designed for use in hot and cold water supply systems, as well as heating. Provides reliable shut-off of the flow of the working fluid. Equipped with a threaded connection of the "American" type for easy installation.

The body is made of forged brass with a nickel-plated finish that provides protection against corrosion. The red-coated butterfly handle is convenient for manual operation.

Technical specifications:

• Type: ball angle, two-way

• Series: Bianchi 422R

• Thread size: 3/4"

• Thread: internal-external (IN)

• Connection: coupling, with American (ISO 228)

• Nominal diameter: DN20

• Passage type: full-passage

• Control method: butterfly handle

• Body material: forged brass CW617N

• Coating: nickel plated

• Working medium: cold and hot water

• Operating temperature: from –10°C to +110°C

• Maximum operating pressure: 25 bar

• Warranty: from the manufacturer

• Country of brand registration: Italy
