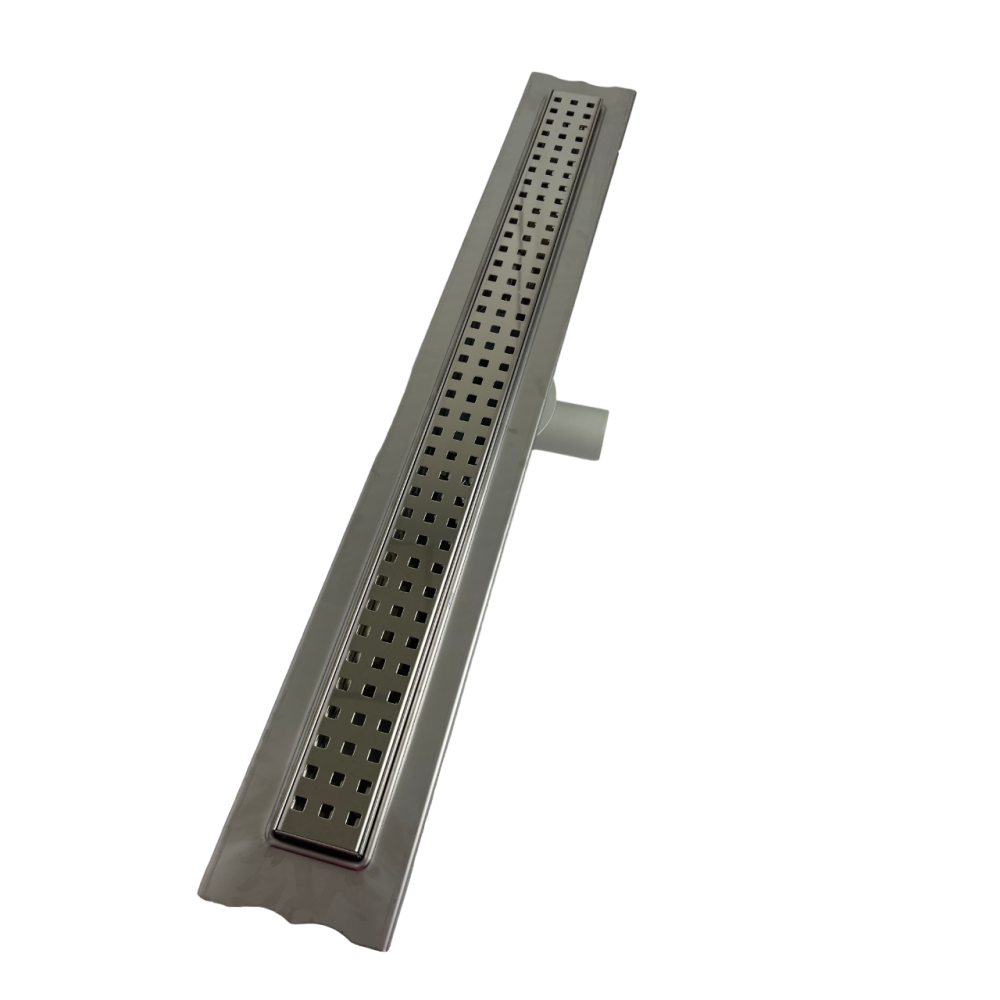

4043.360 Shower channel 360 with solution Square 80cm, horizontal siphon, stainless steel body

Shower channel with horizontal flange "Square"

Ideal shower trays have become a reality today! We offer products made of high-quality stainless steel with a sealing tape. They are characterized by reliability and resistance to chemical and mechanical damage. They are available with a siphon that rotates 360°. Upon request, we can manufacture trays with grates in gold and bronze colors.

The stainless steel grate has a stylish appearance and high quality thanks to AISI 304 steel. A double combined water seal prevents odors from the sewer from entering the room when the water in the siphon dries. Adjusting the height of the leg makes it possible to adapt to the height of the screed. Durable plastic, frost-resistant, resistant to chemical and mechanical damage. One of the important advantages: the ability to adjust the height of the grate even after installing the shower tray!

Features of the shower channel with a horizontal flange "Square":

Flow rate 32l/min.

Double water seal.

Chemical resistance to external influences.

Operating temperature is from -300 +750.

Horizontal flange.

Stainless steel body.

Characteristics of the shower channel with horizontal flange "Square":

Manufacturer: Mertinoks

Country of manufacture: Turkey

Mounting: On the floor

Siphon type: Combined

Drain rate: 32 liters/min

Siphon material: Plastic

Color: Chrome

Width: 5.4 cm

Height: 8.5 cm

Type of water seal: Wet

Siphon type: Monolithic (in the body)

Warranty: 12 months

Siphon outlet: Horizontal

Drain size: 71-80 cm

Outlet diameter into the sewer: 50 mm

Body shape: Rectangular

Body material: Plastic/Stainless steel

Grate: Metal

Length: 80 cm

Siphon purpose: For the tray, For the shower corner, For the shower room

Siphon type: Pipe

Weight: 1.7 kg

Siphons with drain: Yes

Outlet: Yes

Connecting nuts: Yes

Drain grate: Yes

The shower channel kit with horizontal flange "Square" includes:

shower channel body;

grate;

double water seal;
