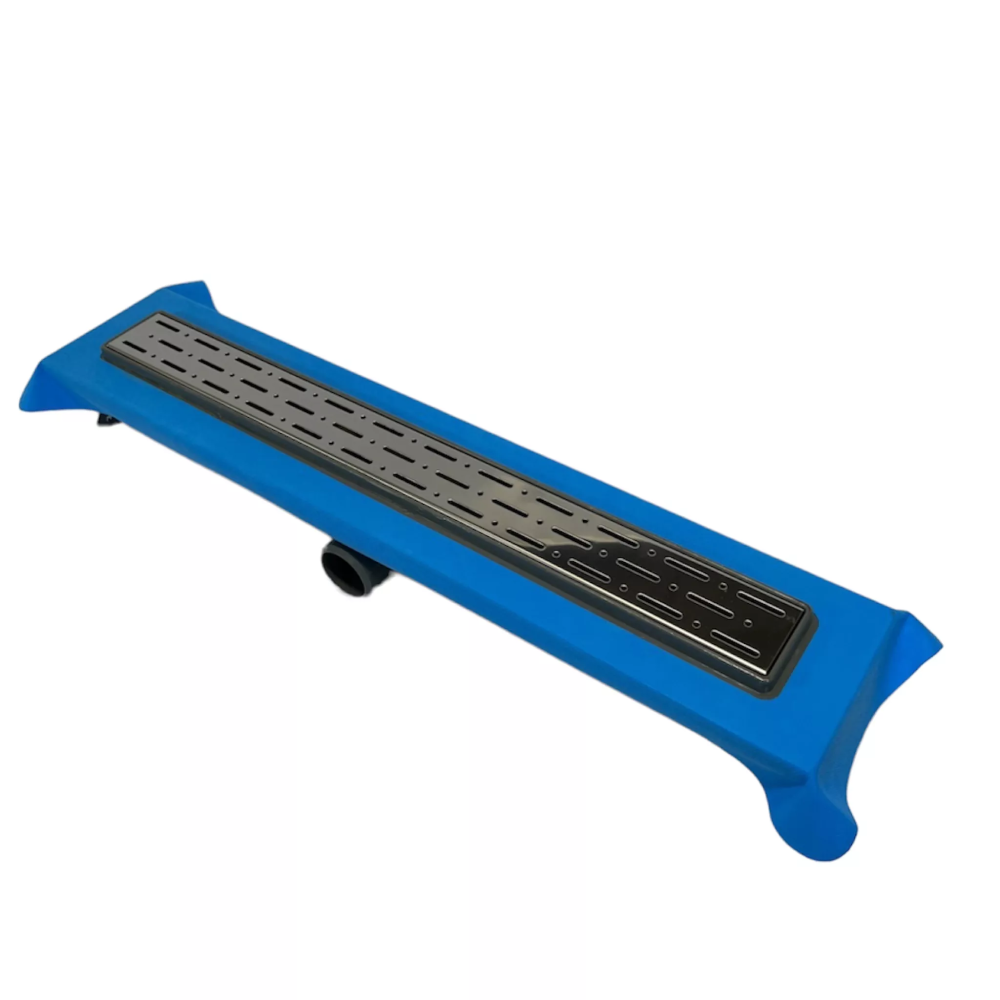

4022.080 Shower channel made of resin. Rain 80 cm, horizontal siphon, plastic body, membrane

Shower channel equipment:
Housing (with horizontal flange and waterproofing tape)
Legs
Gate (double water lock)
Mesh (supplied in protective PE film)
* The product is packed in a cardboard box

The decorative grille of this model is made of AISI 304 stainless steel. The steel thickness is 1 mm, it can withstand a load of up to 300 kg. A protective PE film is applied to the grille, which must be removed after facing work. The body of the tray with a flange, the shutter and the legs are made of durable polypropylene. A blue sealing tape is glued to the flange for better waterproofing around the product itself.

When installing the shower tray, it can be easily adjusted to the screed level due to the height-adjustable legs (from 72 to 102 mm). The product has a throughput of 32 l/min. This is enough so that the water does not remain on the floor surface, but goes into the sewer. The tray has a horizontal outlet with a connection for a 50 pipe.

To prevent odors from the sewer from entering the room, a double water seal is installed inside the gutter. It consists of two cups: one larger and the other smaller. Each “cup” has holes for water drainage. They are arranged so that the holes of one cup cover the holes of the other, thereby blocking the ingress of odors from the sewer.

The Standard series has a grid pattern: "rain"
Tray length: 80 cm
